美國(guó)福祿克Fluke Precision Pressure Gauge Calibrator700G

美國(guó)福祿克Fluke Precision Pressure Gauge Calibrator700G

Introducing Fluke’s New Precision Pressure Gauge calibrators

• Easy to use, rugged and reliable construction with precision pressure measurement from 15 psi/ 1 bar to 10,000 psi/690 bar and 0.05% accuracy

• Compatible with most Hydraulic and Pneumatic Test Pumps

• Combine with one of the Fluke Test Pump Kits (700PTPK or 700HTPK) for a complete pressure testing and calibration solution

• Use the 700G/TRACK Software to upload over 8,000 pressure measurements logged in the field to a PC

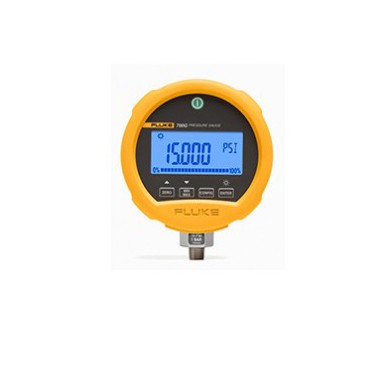

700G Series Precision Pressure Gauge Calibrator

• Nine models ranging from 15 to 10,000 psi

• Bright backlit display for easy viewing of pressure measurements

• Rugged, durable design with protective holster

• High accuracy, 0.05% total measurement uncertainty for one year

• Combined with either the 700PTPK pneumatic pump kit or the 700HTPK hydraulic pump kit for a complete measurement and testing solution

• Demand measurement logging to a PC or to internal memory with 700G/TRACK software

• Work safely in classified areas known to include explosive gasses;

• CSA: Class 1, Div2, Groups A-D rating

• ATEX: rating II 3 G Ex nA IIB T6

• Three-year warranty promises long term value for the investment

Fluke-700PTPK Pneumatic Test Pump Kit

• Generates pressure up to 600 psi

• Connects directly to the 700G series pressure test gauges

• Use kit with 700PXX pressure modules and 71x calibrators

• Includes hoses and adapters for connecting to the pressure device to be tested

• Hard case provided for easy, protective transportation of the gauge or 717 and the pump kit

Fluke-700HTPK Hydraulic Test Pump Kit

• Generates pressure up to 10,000 psi

• Connects directly to the 700G series pressure test gauges

• Use kit with 700PXX pressure modules and 717 calibrators

• Includes hose kit and adapters for connecting to the pressure device to be tested

• Hard case provided for easy, protective transportation of the gauge or 71x and the pump kit

700G/TRACK logging software

• Use with the 700G series gauges to perform real time data logging to a PC

• Download logging configurations to the 700G series gauges for a remote logging event

• Configure logging event reading rate, duration and measurement units

• Upload measuements logged remotely and display or export measurements

• Includes communication cable for connection to a PC

• Specifications
  Model	Range	Resolution	Accuracy	Burst Pressure
  700G04	-14 to 15 psi  -0.97 to 1 bar	0.001 psi 0.0001 bar	Positive pressure ±0.05 % FS   Vacuum ±0.1 % FS	500 psi             34 bar
  700G05	-14 to 30 psi  -0.97 to 2 bar	0.001 psi 0.0001 bar		500 psi             34 bar
  700G06	-12 to 100 psi  -0.83  to 6.9 bar	0.01 psi   0.0001 bar		1000 psi           69 bar
  700G27	-12 to 300 psi  -0.83 to 20 bar	0.01 psi     0.001 bar		2000 psi         138 bar
  700G07	-12 to 500 psi  -0.83  to  34 bar	0.01 psi     0.001 bar		2000 psi         138 bar
  700G08	-14 to 1000 psi  -0.97 to 69 bar	0.1 psi       0.001 bar		10000 psi       690 bar
  700G29	-14 to 3000 psi  -0.97 to 200 bar	0.1 psi         0.01 bar		10000 psi       690 bar
  700G30	-14 to 5000 psi  -0.97 to 340 bar	0.1 psi         0.01 bar		10000 psi       690 bar
  700G31	-14 to 10000 psi  -0.97 to 690	1 psi        0.01 bar		15000 psi   1.035  bar



  Mechanical Specifications
  Dimensions (HxWxD)	12.7 cm x 11.4 cm x 3.7 cm (5 in x 4.5 in x 1.5 in)
  Pressure connection	? in NPT Male, ( 1/4 in NPT to ? ISO adapter provided)
  Housing	Cast ZNAL
  Weight	0.56 kg, 1.22 lbs with holster
  Display	5-1/2 digits, 16.53 mm (0.65 in) high 20 –segment ar graph, 0 to 100 %
  Power	Three AA alkaline batteries
  Battery life	1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate
